Juin Tech F1/R1 Hydraulic Cable Pull Disc Brake Set - Flat/Post mount

£165.00 GBP

These superlight disc brakes are perfect for junior riders! The only real downside of disc brakes is their weight, so selecting a lightweight set is important.

Its not just about weight. Yes, these are some of the lightest disc brakes available (designed for adults) but they're also a closed hydraulic circuit design, providing hydraulic power where it's needed at the pistons, but cable actuated, so they can still be used with short-reach shifters needed by children. That's important as many full hydraulic systems can provide too much stopping power for low rider weights, using larger, more difficult shifters with hydraulic reservoirs.

The Juin tech F1/R1 hydraulic cable pull disc brake set offers a unique solution to the road/gravel/cyclocross (CX) rider wanting to upgrade from mechanical cable pull disc brakes. The F1/R1 is the latest addition to the Juin Tech stable, sold as a pair including mounting bolts and rotors

The brake pads operate by a cable actuated closed hydraulic mineral oil system. This allows you to use your normal sti/ergo levers on a disc brake bike without the expense of upgrading everything to accommodate a full hydraulic set up.

Braking performance is enhanced over a mechanical disc brakes with easy pad and cable adjustment. The pistons actuate in a parallel motion unlike the one sided movement of a mechanical disc brake and at approx. 142grams per calliper they offer a substantial weight saving.

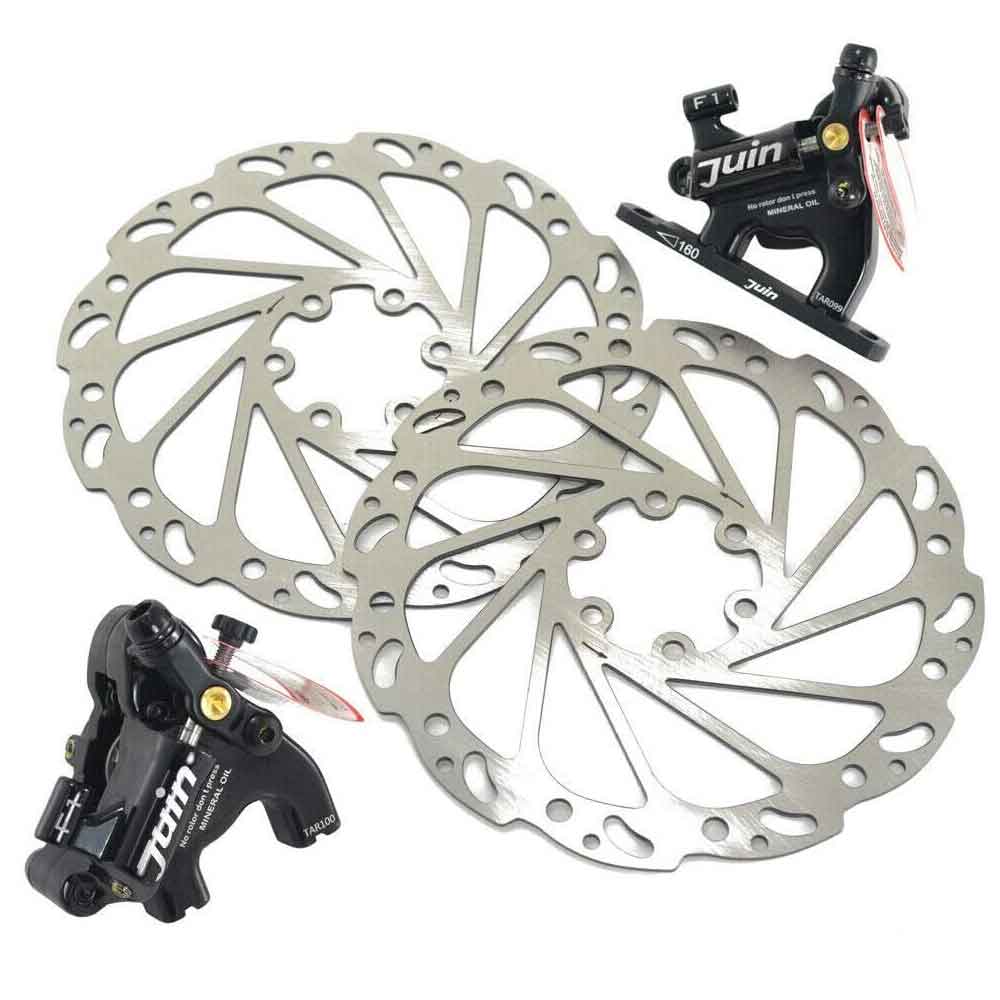

The Juin Tech F1 Flat Mount Disc Brake Set comes complete with the following:

  • 2 x hydraulic Flat Mount cable actuated calipers, inc pads
  • Flat Mount front Adapter
  • 2 x M5 x 16 bolts and washers - Front
  • 2 x M5 x 44 bolts & washers
  • 2 x M5 x 34 bolts & washers
  • 2 x M5 x 39 bolts & washers
  • 2 x M5 x 29 bolts & washers
  • 2 x 160mm Stainless Steel Rotors (6 Bolt IS)
  • 12 x torq screws to mount rotors
  • Weight: 142grams per caliper approx

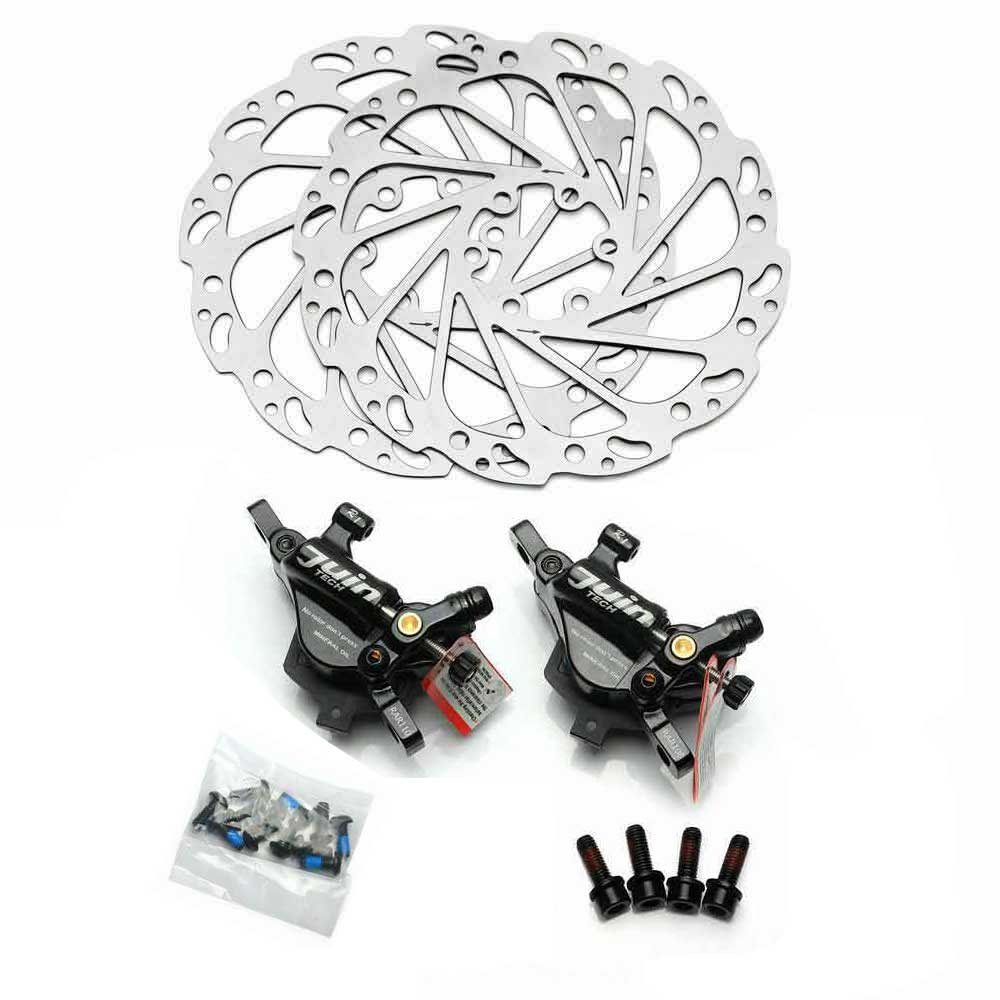

The Juin Tech R1 Post Mount Disc Brake Set comes complete with the following:

  • 2 x Hydraulic cable actuated Post Mount disc calipers, inc pads
  • 2 x Postmount adapters
  • 4 x Postmount bolts & washers - long
  • 4 x Postmount bolts - short
  • 2 x 160mm Stainless Steel Rotors (6 Bolt IS)
  • 12 x torq screws to mount rotors
