HUP evo (non-UCI) cyclocross frameset
£399.99 GBP
The new HUP evo is a game-changing Cyclocross disc frameset, using unique geometry to fit youth riders correctly, based on full-sized 700c wheels. Lightweight, low-standover and low stack, these unique frames allow riders of all ages to shoulder easily with it's curved, flat bottom top-tube - Koksijde ready!
This clever frame design can deal with serious mud, thanks to it's class-leading 55mm clearance, which also allows the fitting of 650b wheels & 46c tyres. Flat Mount disc brakes produce all-weather braking reliability. Stiff, lightweight thru-axles (just 80g per pair) and a long trail layout increase high-speed stability. A superlight monocoque carbon fork creates a very light front end, improving manoeuvrability especially for smaller/lighter riders.
With a triple-butted 7005 frame and full carbon fork, these lightweight framesets use the latest internal cable technology with easy fitting for novice mechanics thanks to a downtube 'letterbox'. Running full-length outer cables ensures race reliability and reduces Winter maintenance to a minimum.
HUP framesets have been specifically developed with class-leading progressive geometry and when built with the right components, achieve unrivalled fit. It's the frame everyone want to ride, at the price everyone want to pay!
Included with this frameset: frame, fork, headset, mech hanger, thru-axles, BB cable guide & cable fittings.
Self-build bundles or components available separately. HUP framesets are handmade/painted in Taiwan.
Frame Material: Aluminium Alloy 7005 (triple-butted)
Fork Material: Carbon fibre with carbon steerer, 1 1/8" tapered steerer
Frame Weight*: from 1295g (fully built 1x bikes are typically approx 8kg on our CD35 wheels)
Fork Weight*: 410g

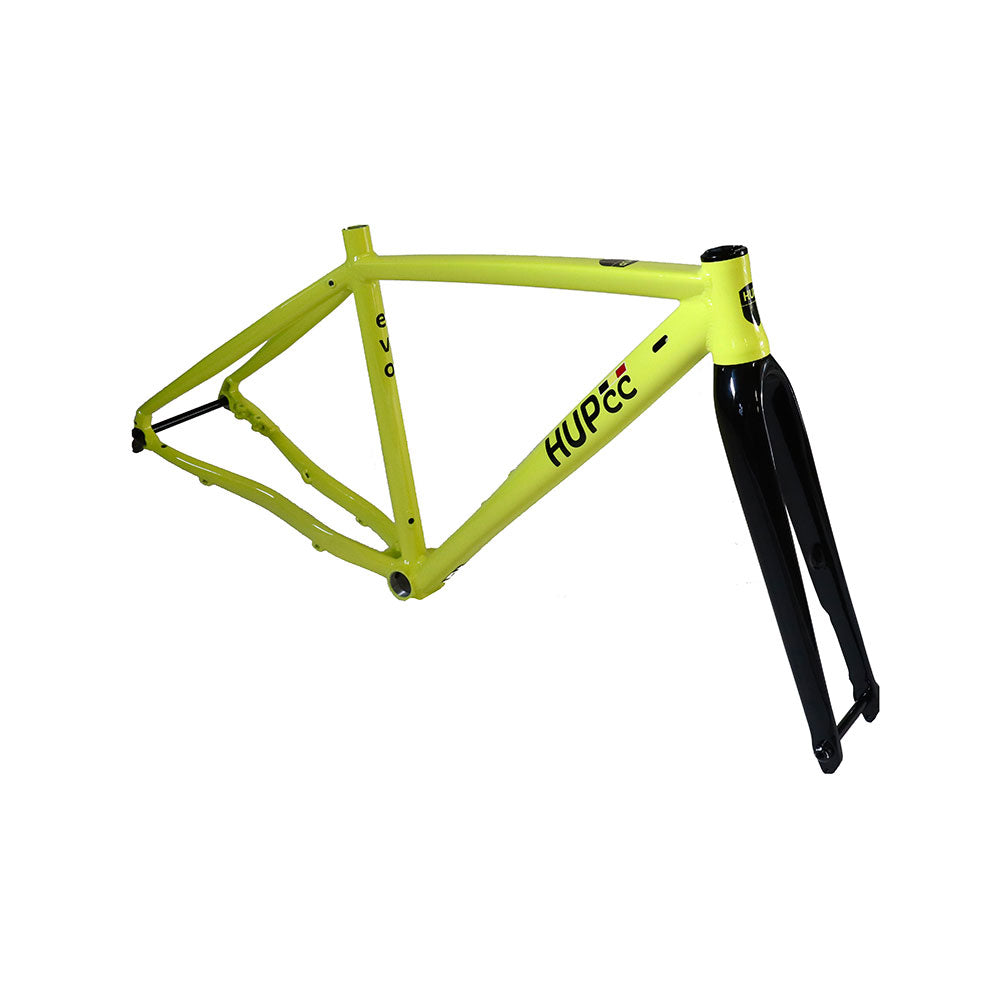

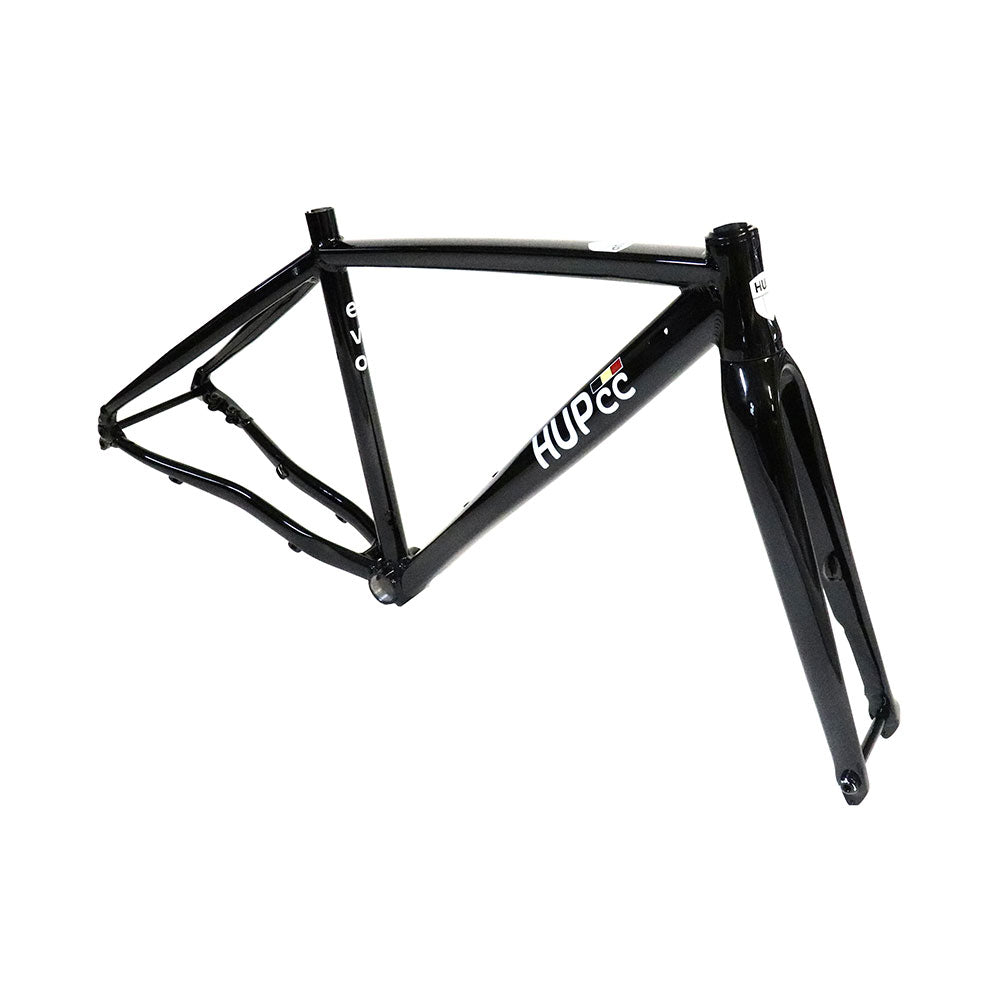

Colour: Stealth Black, Belgian Blue, Bright Yellow and Cool Grey - with black carbon finish fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: Flat mount disc: 140/160 rear & 140/160 front rotors
Seatpost Diameter: 27.2mm
Bottom Bracket: 68mm English
Front Axle OLD: 100mm Shimano thru-axle
Rear Axle OLD: 142mm Shimano thru-axle
Tyre Clearance: 38c (700c) or 46c (650b)
Maximum Gearing: 44T (1x) or 50/34T

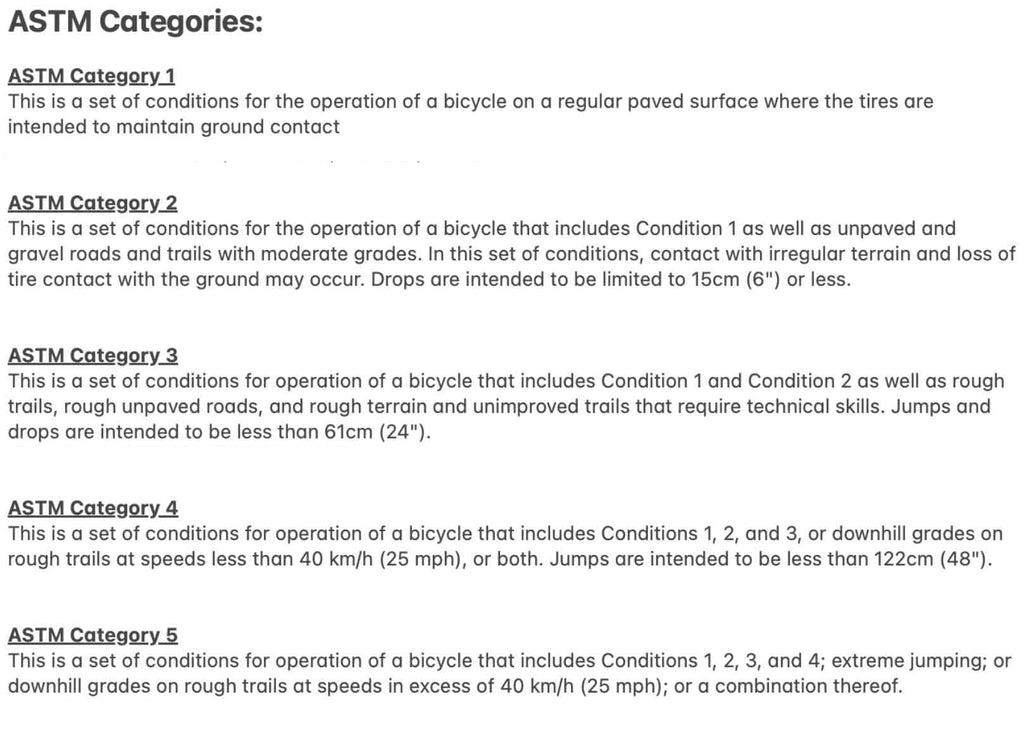

Max Weight: 100kg and ASTM category 2 useage
Cabling: internal downtube/top-tube
Note: We recommend you fit frame protection tape.
For sizing guide/geo CLICK HERE.
*subject to manufacturing tolerance +/- 3%
Below is a small selection of the 1000's of HUP bikes ridden and raced around the world by riders of all sizes! #HUPcc #HUPbikes
