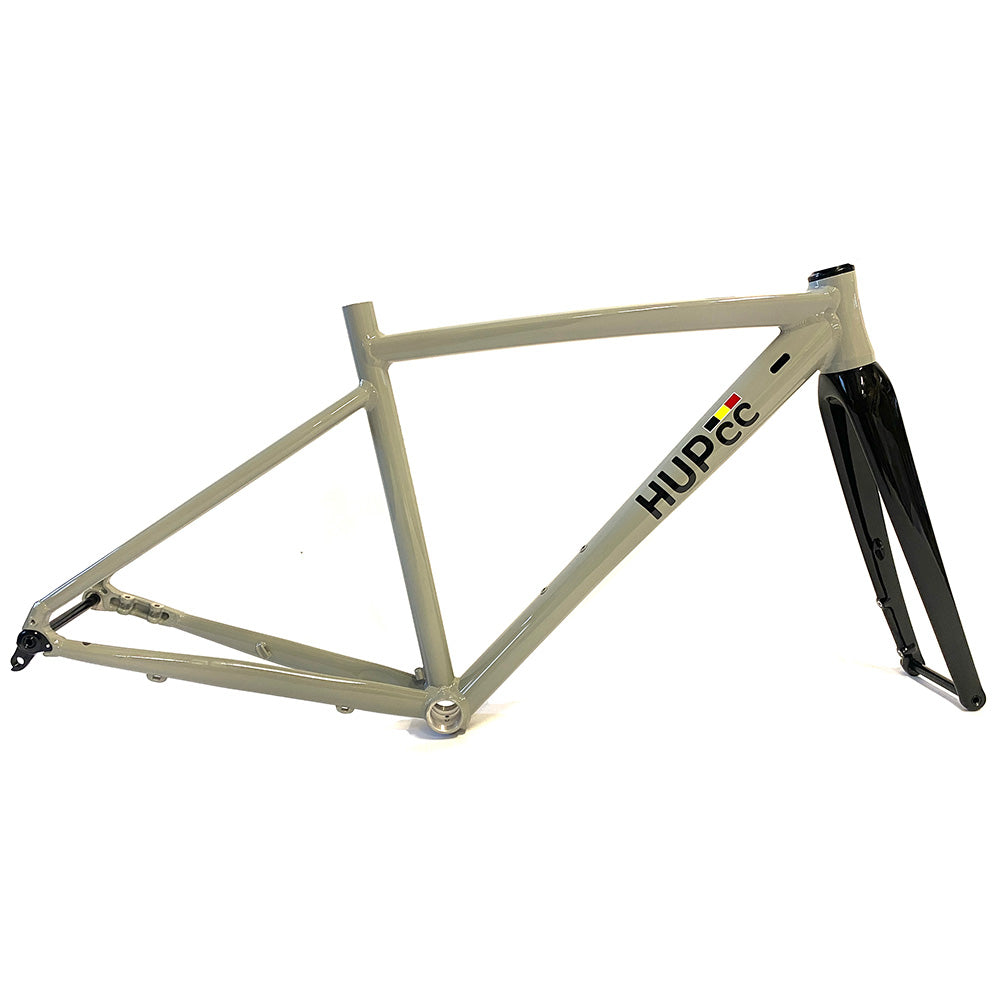

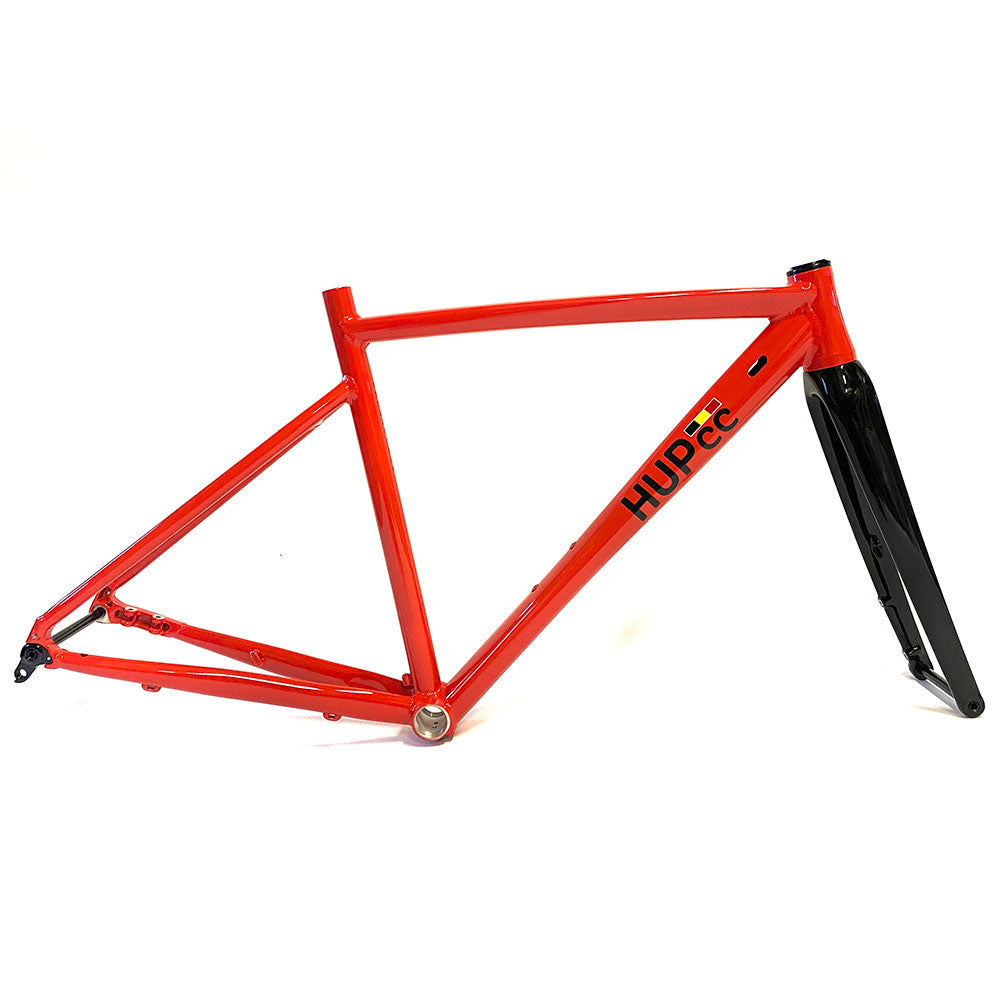

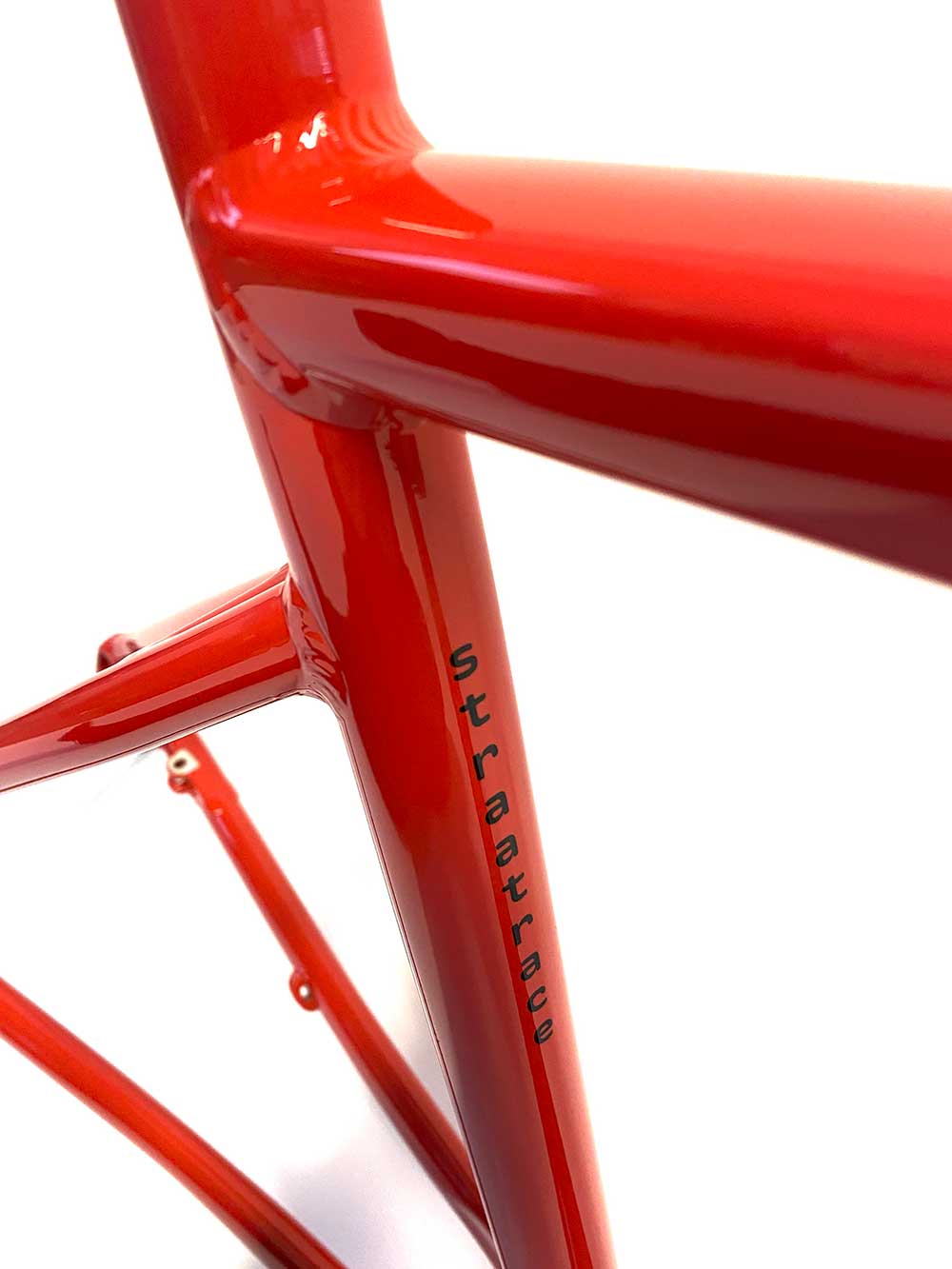

HUP straatrace Road Frameset
The new HUP straatrace is the lightest child-specific road frameset on the market, using unique XXS geometry to fit smaller riders correctly (perfect for young racers) based on full-sized 700c wheels. Lightweight, low-standover and low stack, this unique frame is suitable for 25c tyres - ready for the Belgian cobbles...

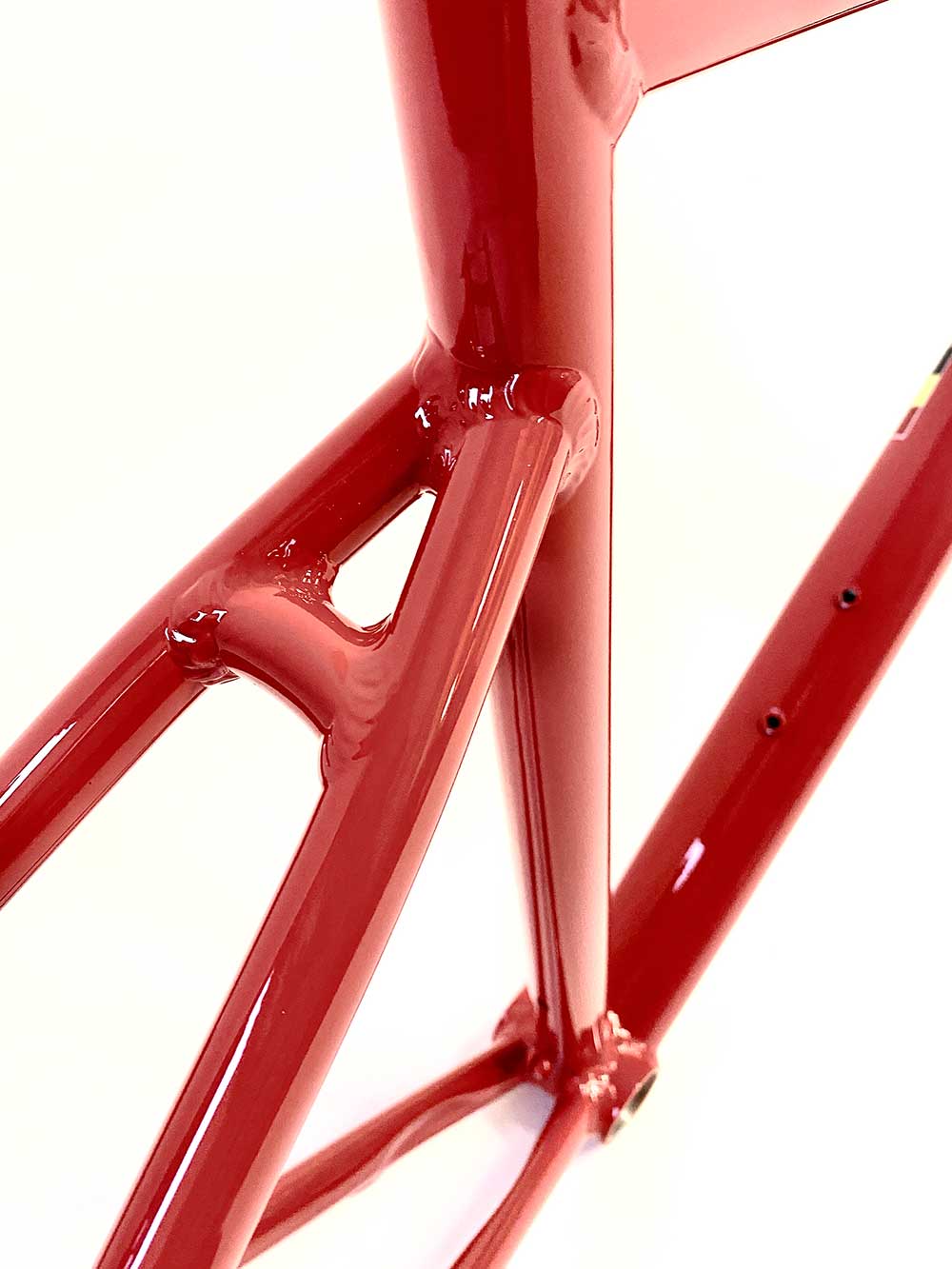

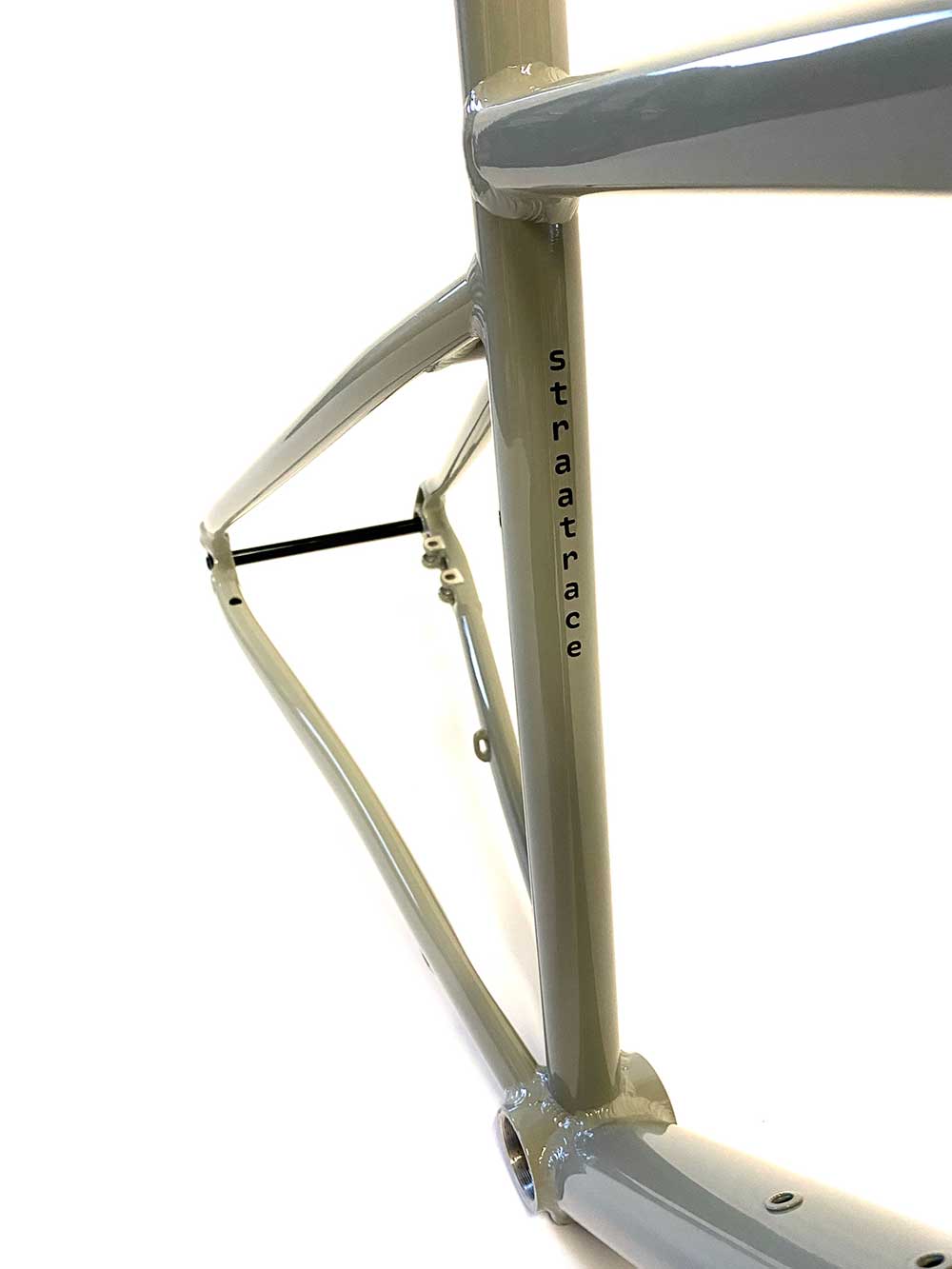

With a lightweight triple-butted 7005 frame and full carbon fork, the #HUPstraatrace uses the latest internal cable technology with easy fitting for novice mechanics thanks to a downtube 'letterbox'. When built with HUP cranks, riders benefit from the correct length/q-factor to match the high cadence of criterium road races.
HUP straatrace road frames start with the tiny 37cm for riders as small as 128cm tall. Performance benefits of younger riders on 700c wheels are well proven and the practical benefits of component sharing with their parents and siblings is a game-changer. No more odd sized 24" or 26" wheels!
HUP framesets have been specifically developed for children's long leg/short torso physiology with short top-tubes (just 47.9cm long for the 37cm) and when built with HUP components, achieve unrivalled fit. Framesets are so lightweight, depending on build spec, UCI minimum weight bike builds are realistic. Photo example above is a custom-build 37cm @ 6.8kg with pedals (rider height 130cm). Standard 10sp Microshift builds are approx 7.9kg.
Included with this frameset: frame, fork, headset, mech hanger, BB cable guide & cable fittings.
Self-build bundles or components available separately. HUP framesets are handmade/painted in Taiwan.
Frame Material: Aluminium Alloy 7005 (triple-butted)
Fork Material: Carbon fibre with carbon steerer, 1 1/8" tapered steerer
Frame Weight*: 37cm: 1285g | 44cm: 1325g | 48cm: 1365g
Fork Weight*: 320g
Colour: HUP white with black carbon finish fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: rim caliper
Seatpost Diameter: 27.2mm

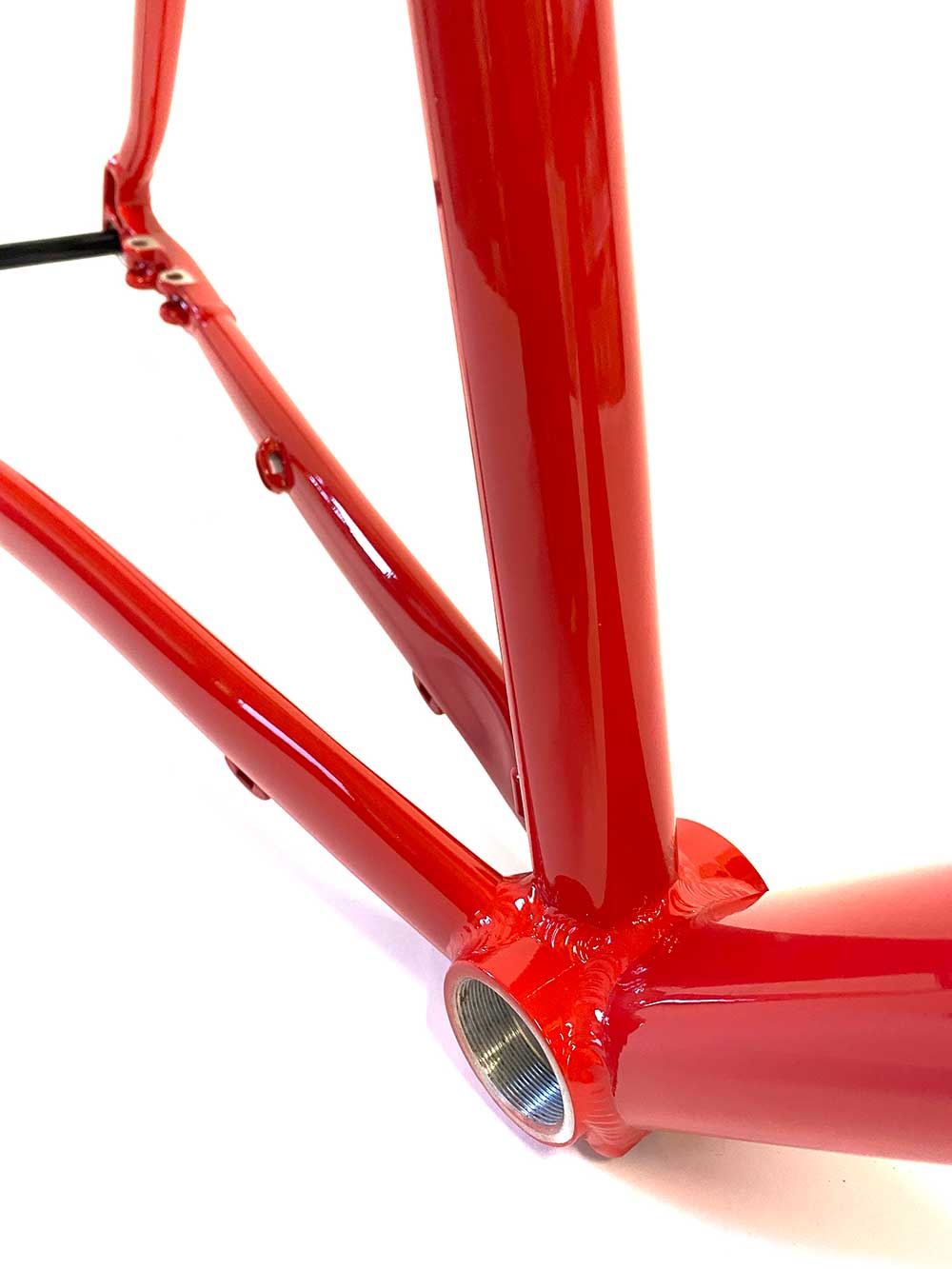

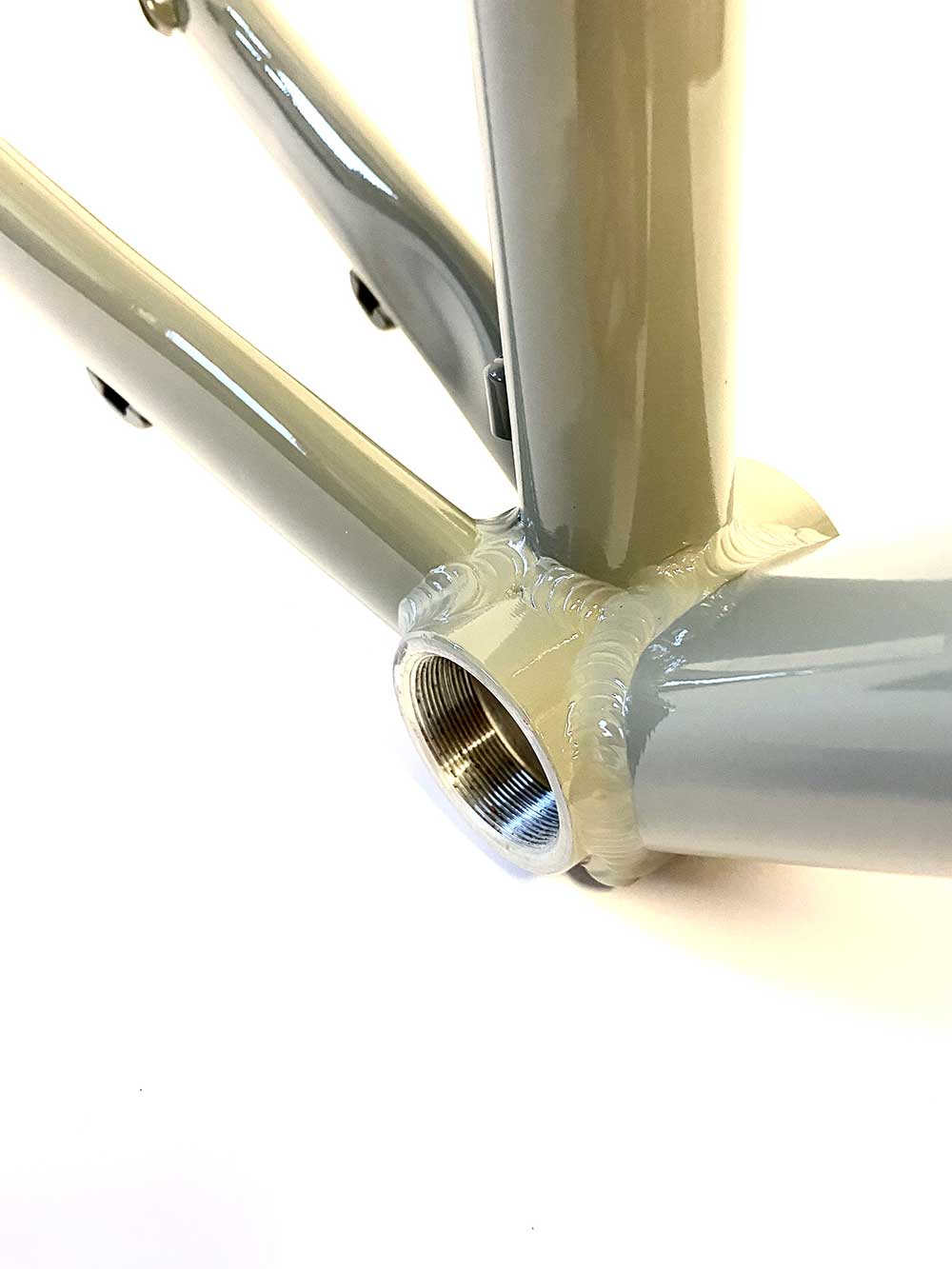

Bottom Bracket: 68mm English
Front Axle OLD: 100mm QR
Rear Axle OLD: 130mm QR
Tyre Clearance: 25c
Maximum Gearing: 53/36T
Cabling: internal downtube/top-tube
Age Range: 7-years old and up.
Recommended Min Inside Leg (bare-foot): 62cm (37cm) | 66cm (44cm) | 69cm (48cm)
We measure our bikes from the floor up to the top-tube, in-front of the saddle, then minus 2cm for shoes (smaller is possible with experienced racers)
*Unlike many brands, we quote weights (subject to manufacturing tolerances) and you should always compare full frameset weights for a real world comparison as most brands play a game: quote light frames, but supply heavy alloy steerer forks, thru-axles & headsets! HUP doesn't play games, but we do build light bikes.
Go Social with HUP Competition Cycling: #HUPcc #HUPbikes #HUPstraatrace
We have riders from 3ft 10" to 6ft+ on our HUP bikes (including Mums and Dads too with 37cm to 58cm frame sizes). From the brutal Cyclocross Nationals to Summer road races, junior Triathlon, Winter and Summer Track Omniums or MTB XC, they've done it all. Here is a small selection below...
