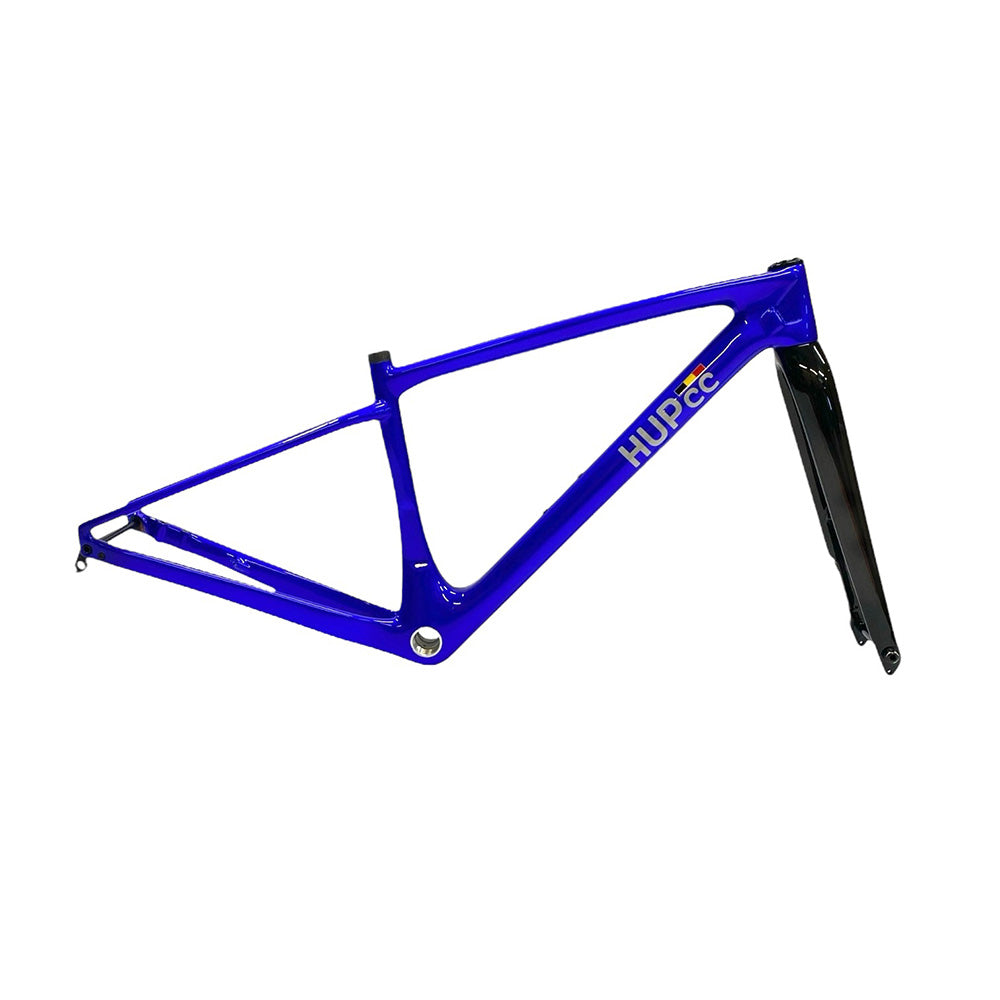

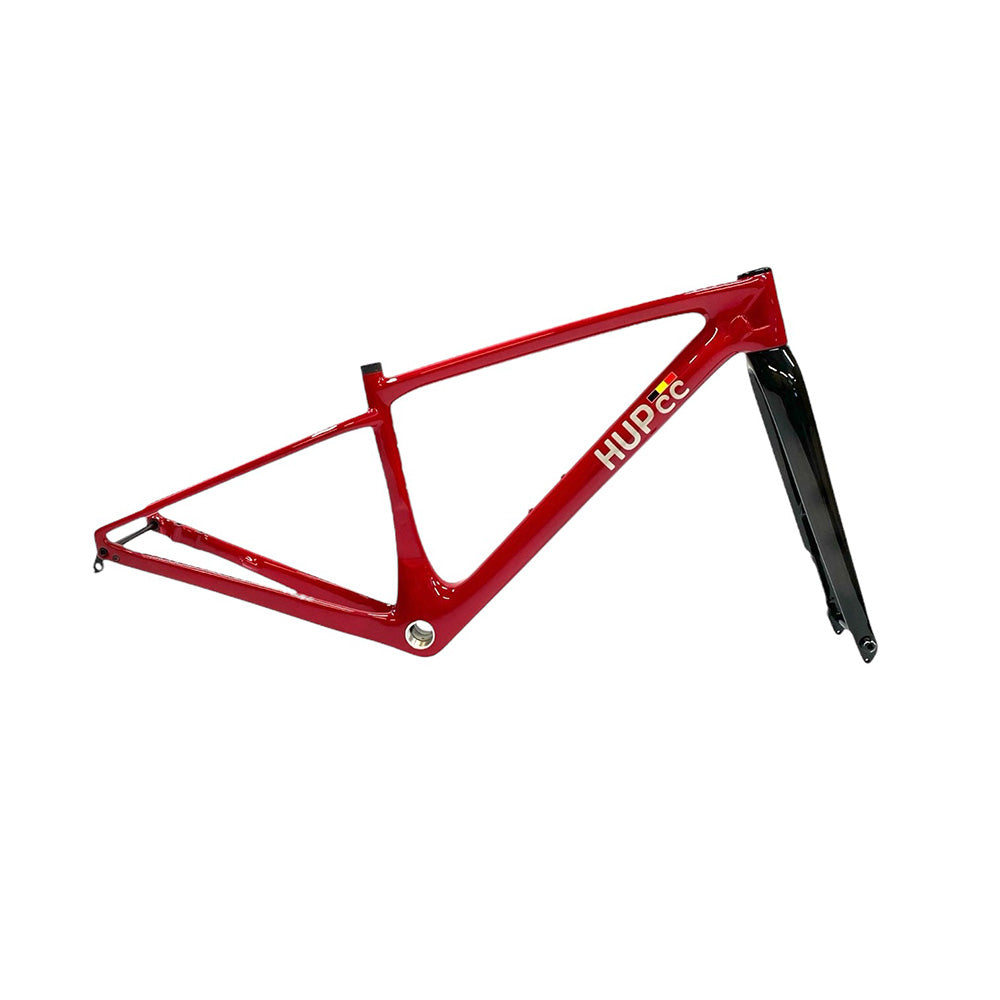

HUP evo SL Carbon Cyclocross Frameset (Kids Sizes)

£999.99 GBP

The new HUP evo SL is the ultimate kids/small adult cyclocross frameset, using unique XXS geometry to fit smaller riders on full-sized 700c wheels...

Lightweight, low-standover and low stack, this unique frame allows younger riders than usual to benefit from a superlight carbon-fibre frame. Thanks to the use of shorter cranks, these unique frames have lower bottom brackets, moving body weight down, improving the centre of gravity and increasing cornering speeds.

With a Japanese Toray T700 carbon frame and full carbon fork, the 37cm #HUPevoSL is the lightest frameset available, using the latest internal cable technology with easy fitting for novice mechanics thanks to full length internal tubing for the cables (using full-length outers). For Self-Build Bundles CLICK HERE.

HUP evo SL frames start at 37cm for riders approx 130cm tall upwards. The SL model uses a slightly longer top-tube to the Aluminium version, to increase the longevity of the frame for growing kids. An addtional benefit of this, is to also make the frame perfect for road racing - a genuinely lightweight, all-year round bike.

Included with this frameset: frame, fork, headset, mech hanger, thru-axles, BB cable guide & cable fittings.
Self-build bundles or components available separately. HUP evo SL framesets are handmade/painted in China.

Frame Material: Japanese Toray T700 carbon-fibre
Fork Material: Carbon fibre with carbon steerer, 1 1/8" tapered steerer
Frame Weight*: from 1025g
Fork Weight*: 410g
Colour: Belgian Blue, Racing Red or Cool Grey - with black fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: Flat mount disc: 140/160 rear & 140/160 front rotors
Seatpost Diameter: 27.2mm
Bottom Bracket: 68mm English
Front Axle OLD: 100mm Shimano 12mm thru-axle
Rear Axle OLD: 142mm Shimano 12mm thru-axle
Tyre Clearance: 38c (700c)
Recommended Max Crank Length: 165mm
Maximum Gearing: 44T (1x only)
Max Weight: 75kg and ASTM category 2 useage
Cabling: internal (full length guide tubes) and 1 set of cage bosses on downtube
Note: Seat posts will need to be cut-to-suit for shorter riders. We recommend you fit frame protection tape.

Age Range: 7-years old+
Recommended Min Inside Leg (bare-foot)**: 64cm (37cm) | 67cm (44cm) | 70cm (48cm)

*subject to manufacturing tolerance +/- 3%

** measured from the floor up to the top-tube, in-front of the saddle, then minus 2cm for shoes. For sizing guide/geo CLICK HEREFor small adults using the kids sizes, get in touch to confirm the best fit for you.

Below is a small selection of the 1000's of HUP bikes ridden and raced around the world by riders of all sizes! #HUPcc #HUPbikes
